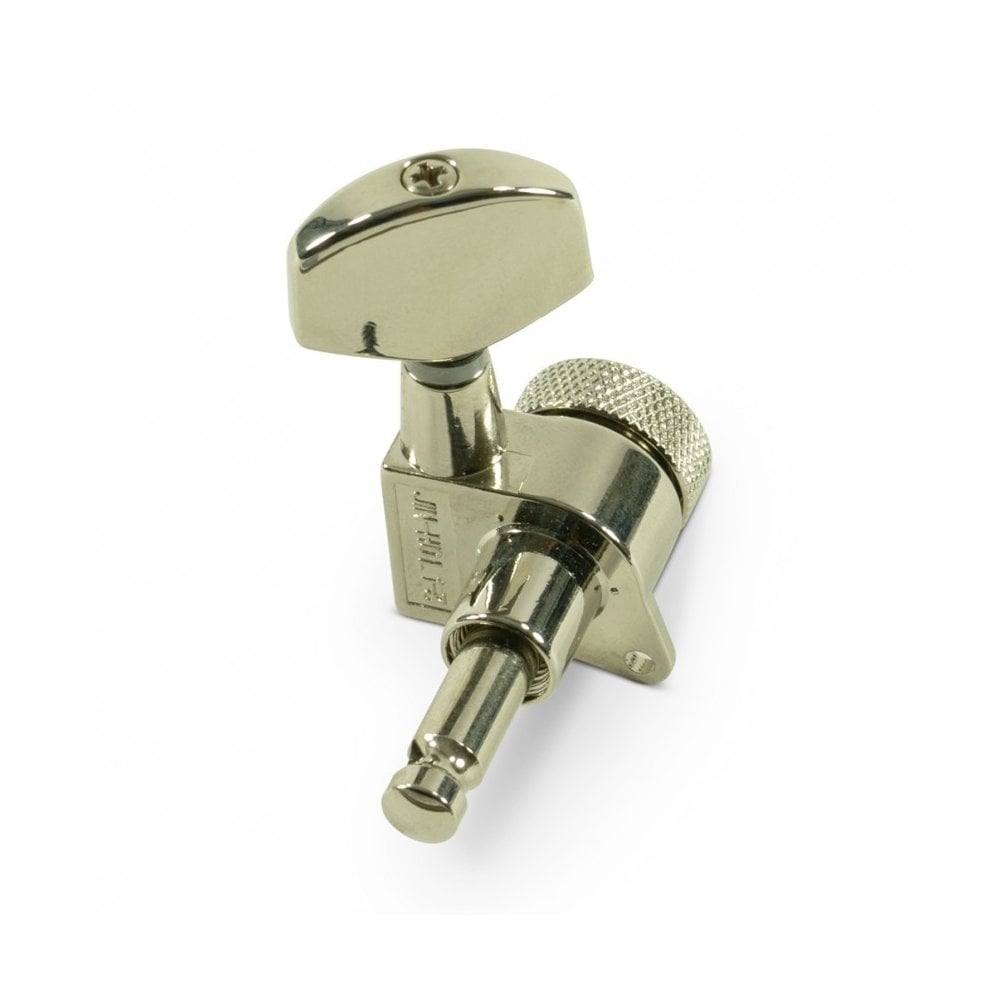

Kluson 3 Per Side Locking Contemporary Diecast Series Tuning Machines 19:1 Gear Ratio

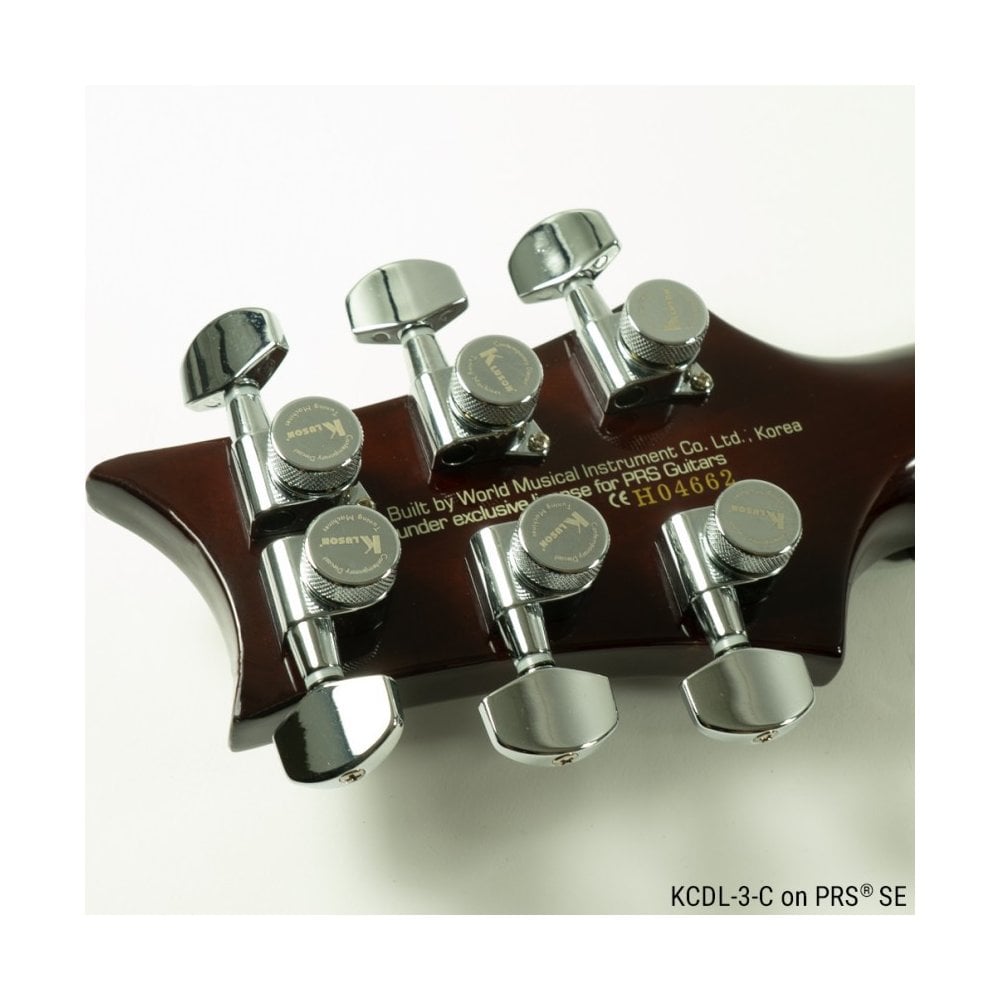

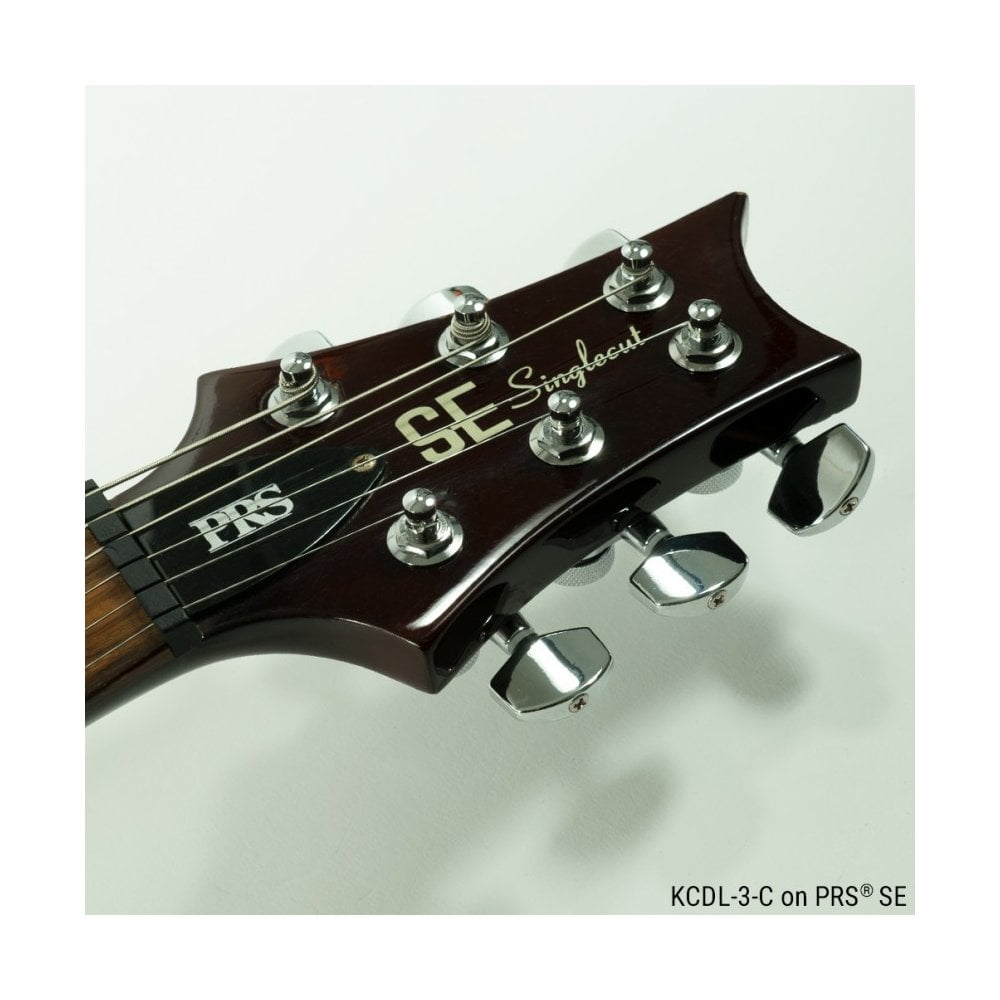

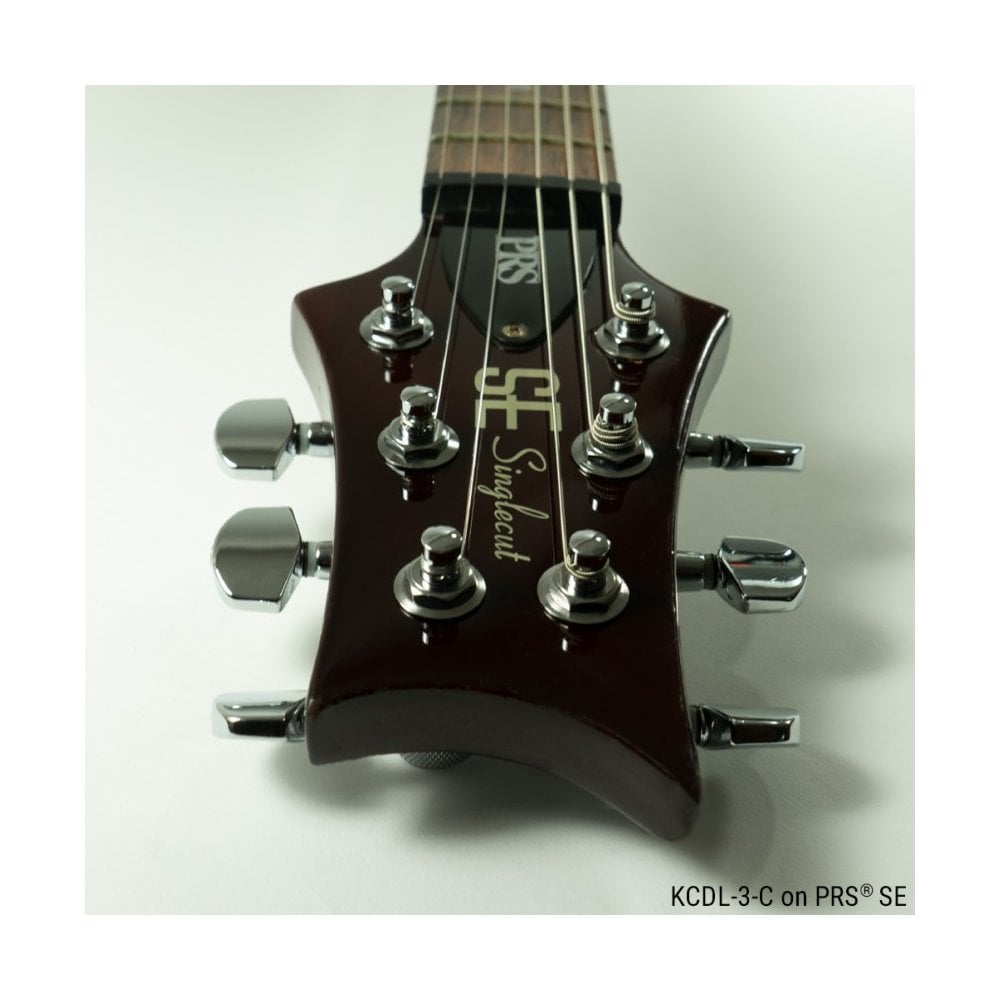

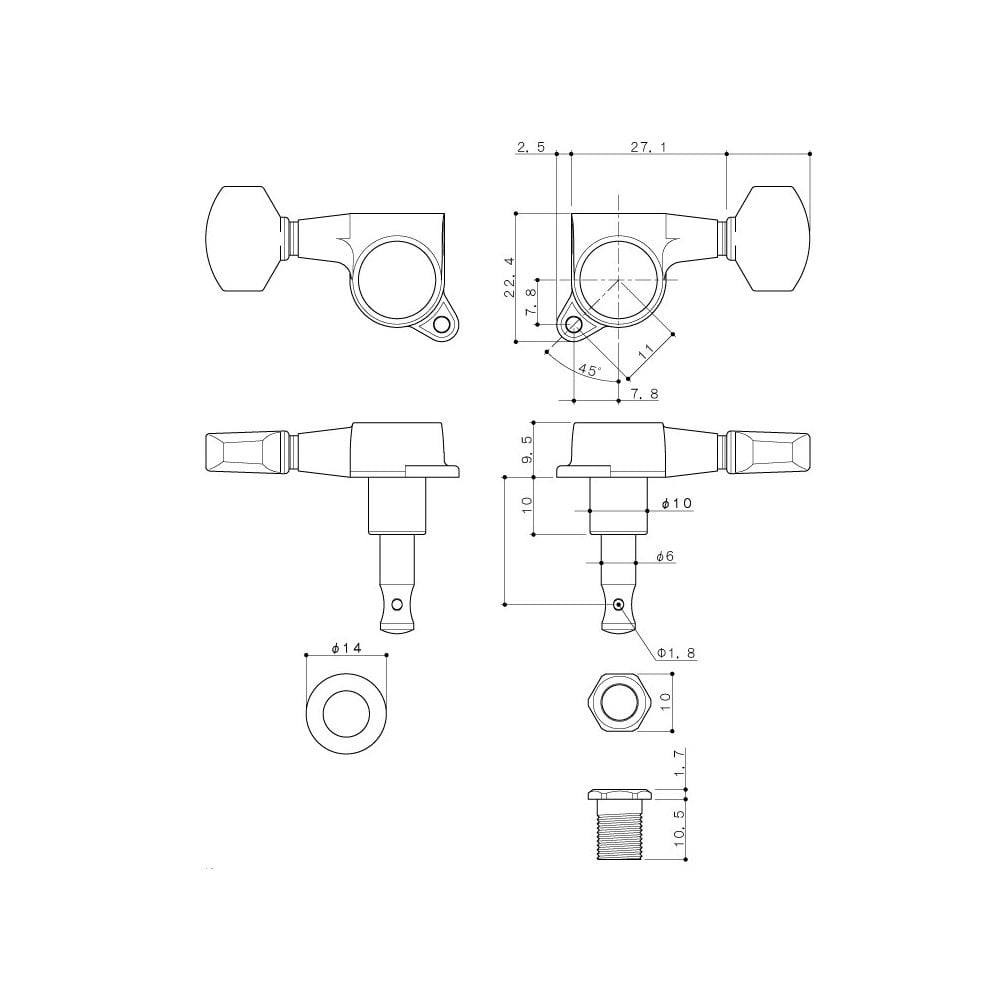

The Kluson Contemporary Series 19:1 ratio locking tuning machine uses the more desirable rear knob locking system and is designed for usage on contemporary guitars. This design requires an individual mounting hole location offset at approximately 7 O'clock or 4 O'clock depending on left or right handed application (bass or treble side). As can be seen in the additional images, this model is ideal for the PRS SE models.

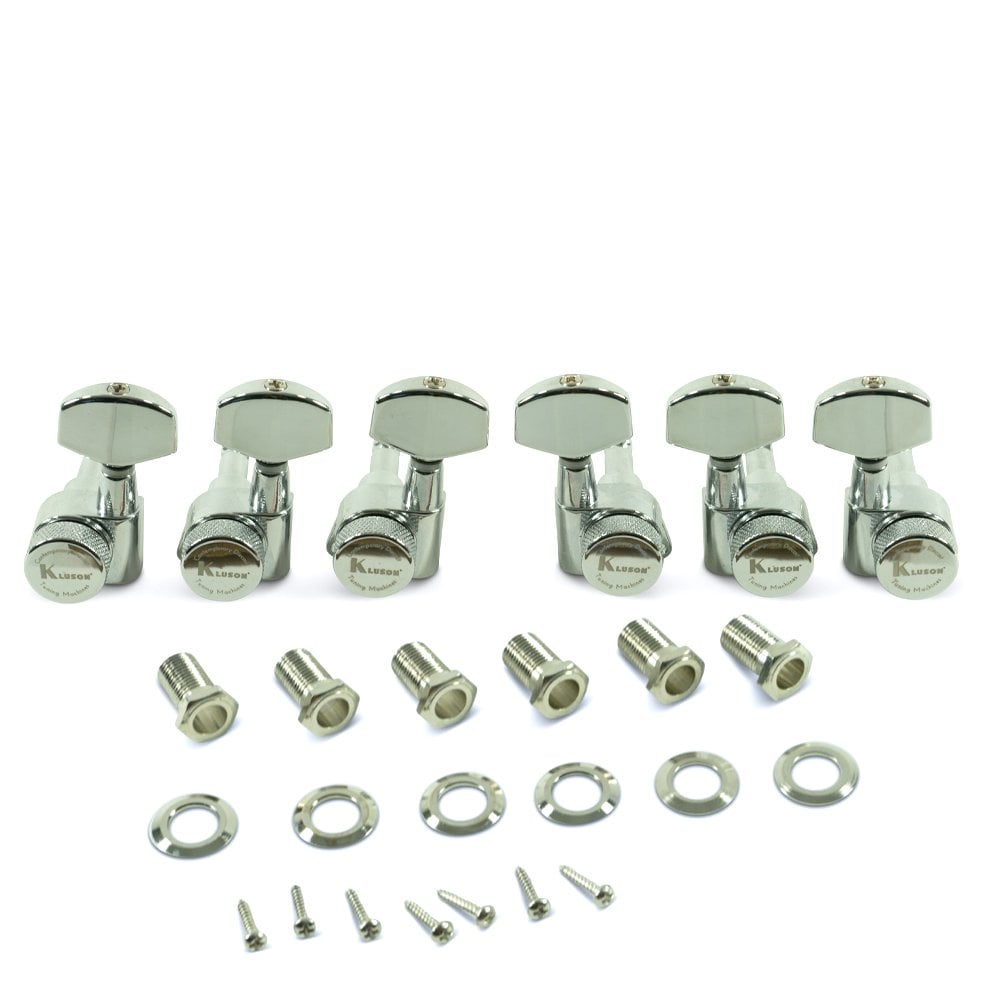

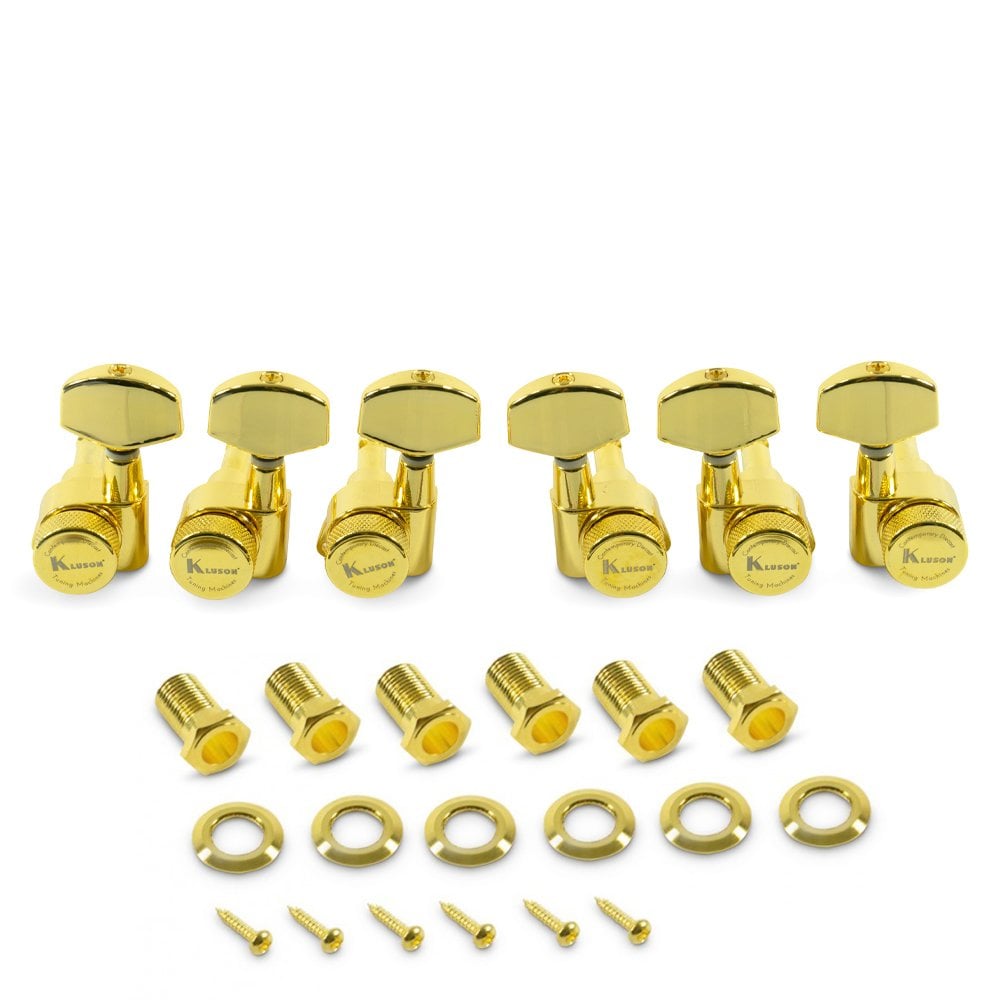

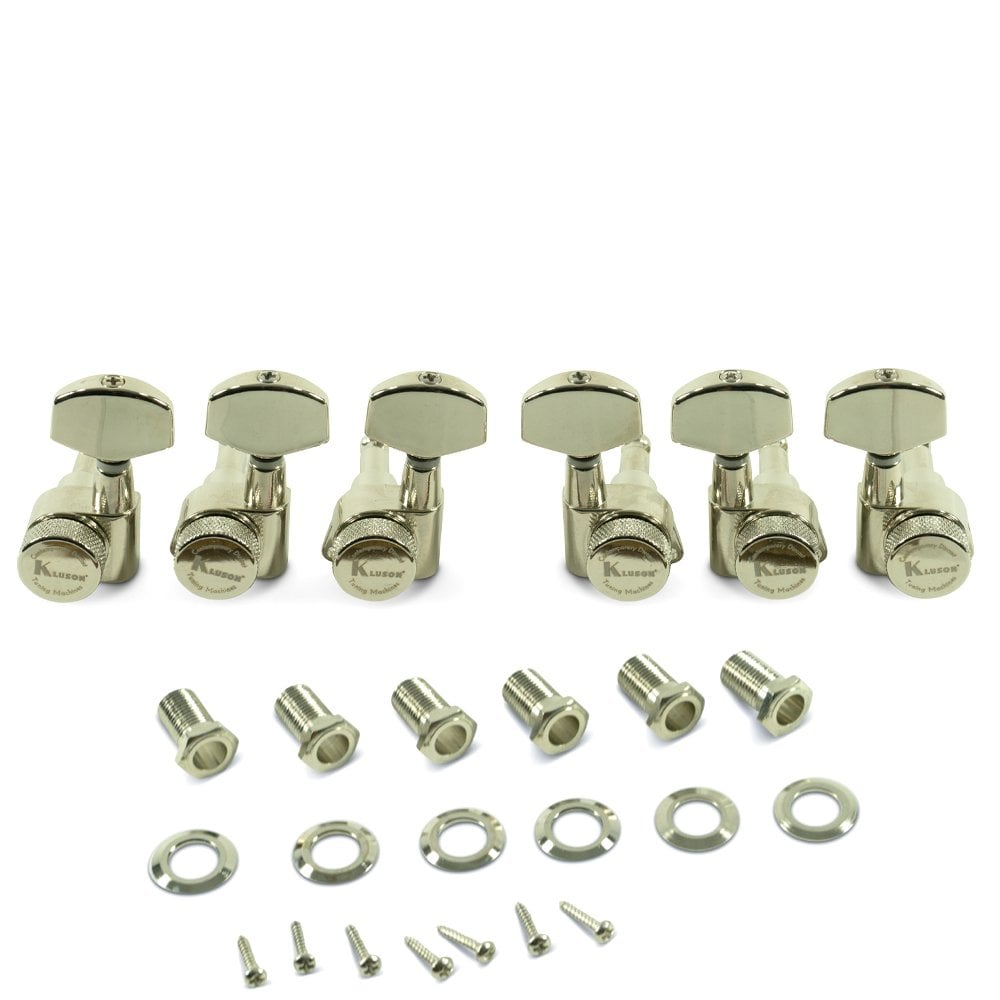

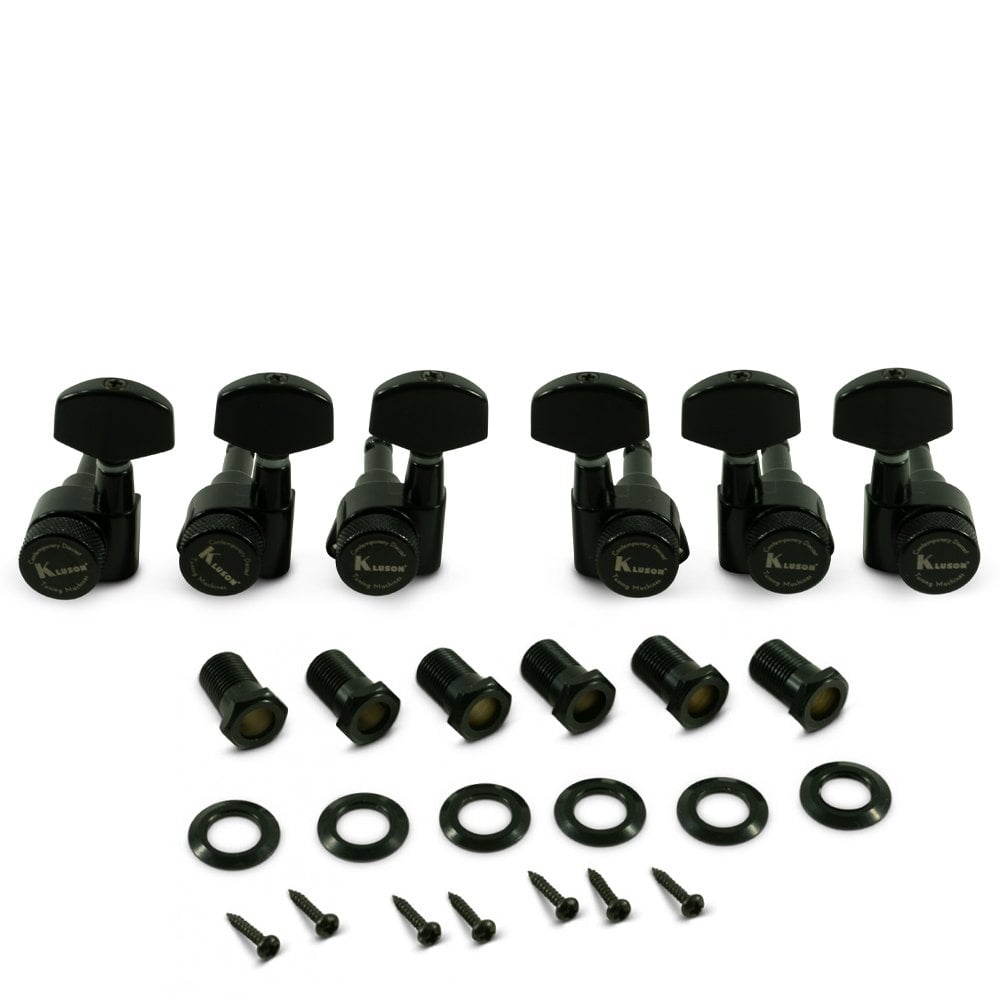

Uses the common modern 25/64 in. (10mm) peghole with a hex head type screw-in bushing and single mounting screw. This is a 3 + 3 set of tuning machines with all mounting hardware included.

String Post Overall Height= 1 3/64 in.

String Thru Hole Ctr Height= 7/8 in. (22.3mm)

String Post Diameter = 6mm

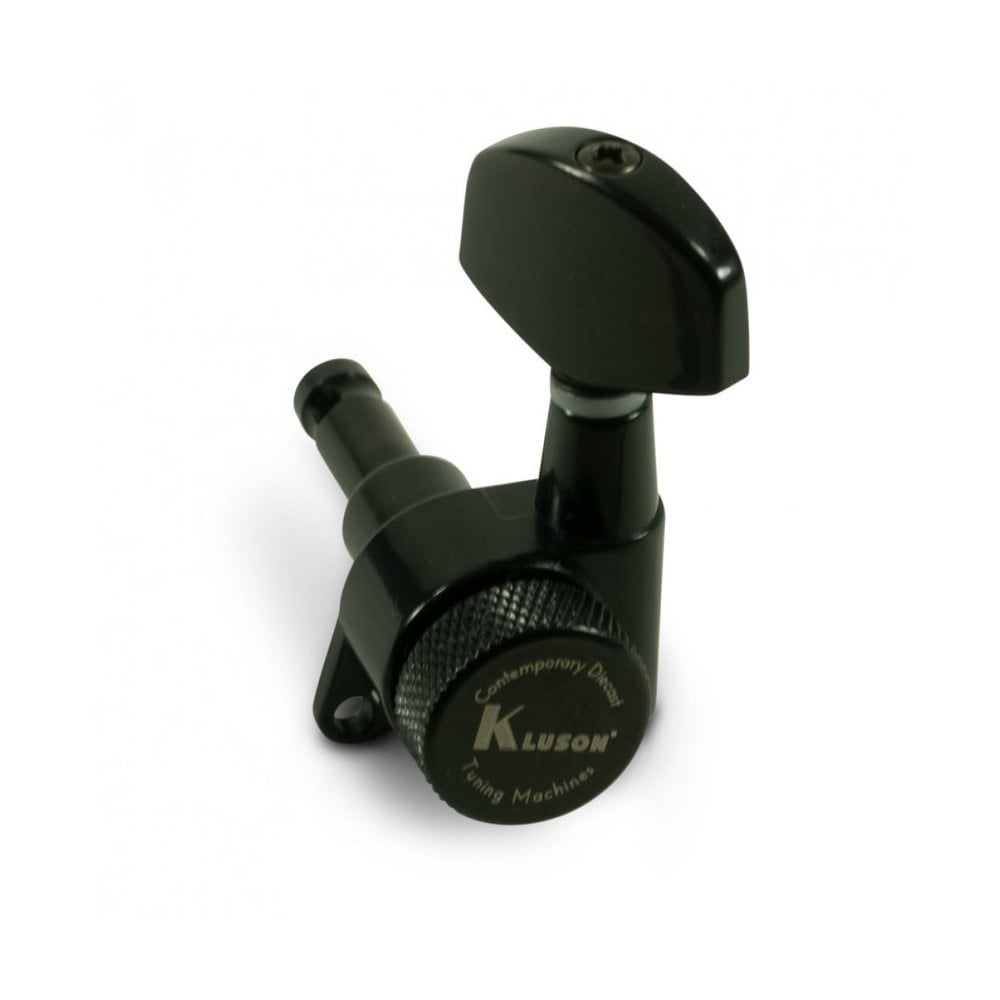

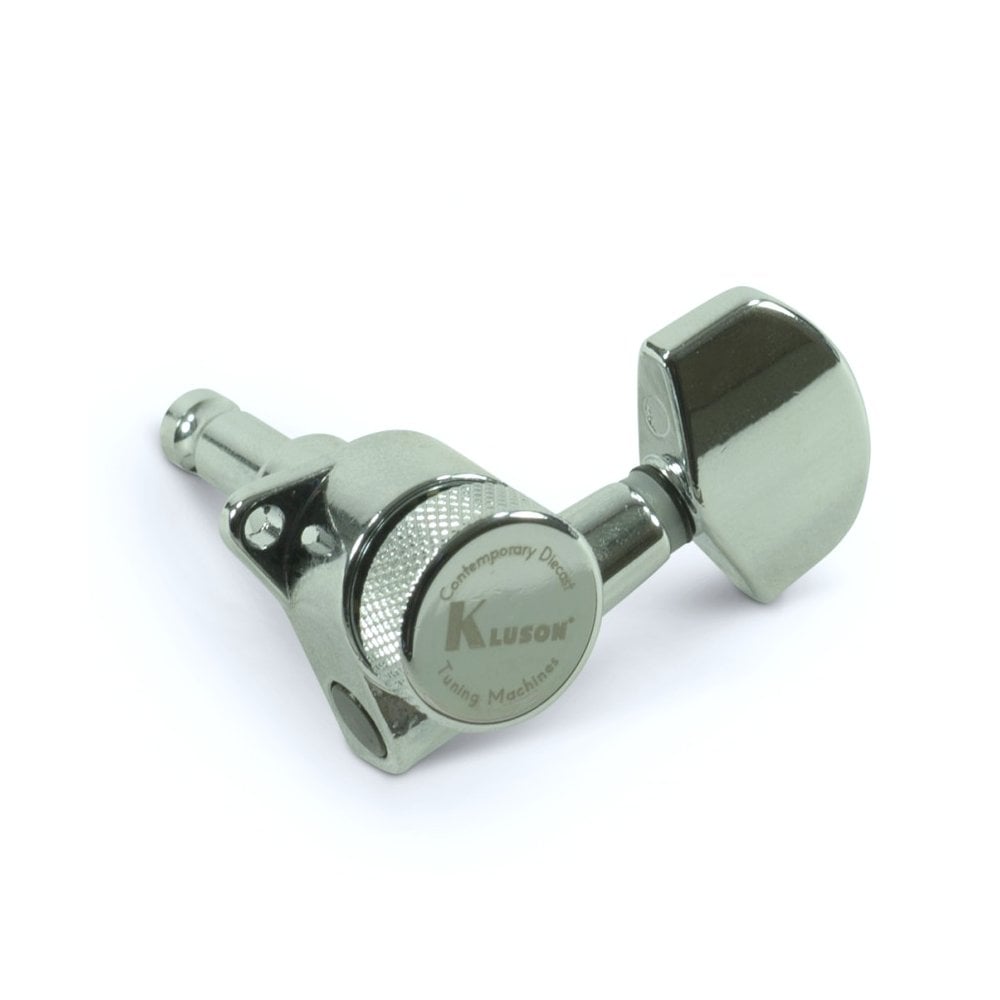

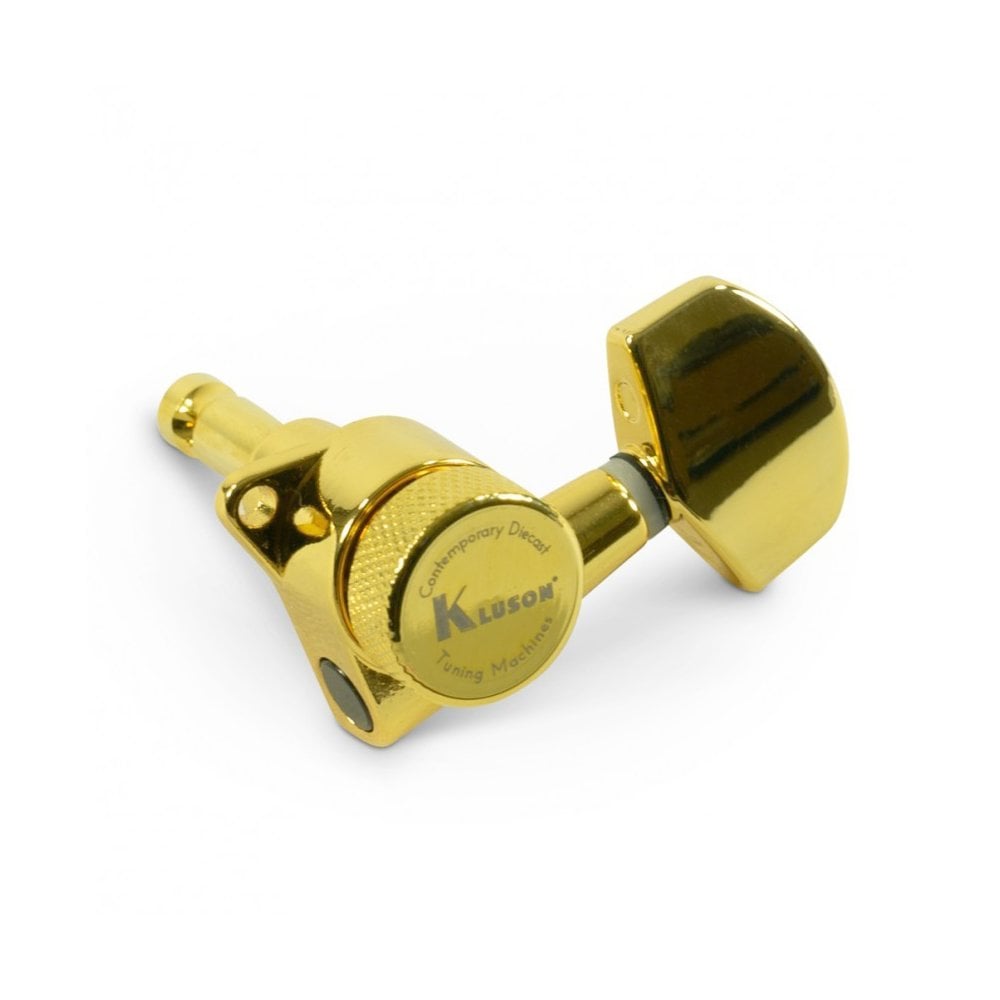

Locking Feature= Knob on back of housing

Gear Ratio= 19:1

Peg Hole Requirement= 25/64 in. (10mm)

Bushing Type= Screw-in Hex Head
