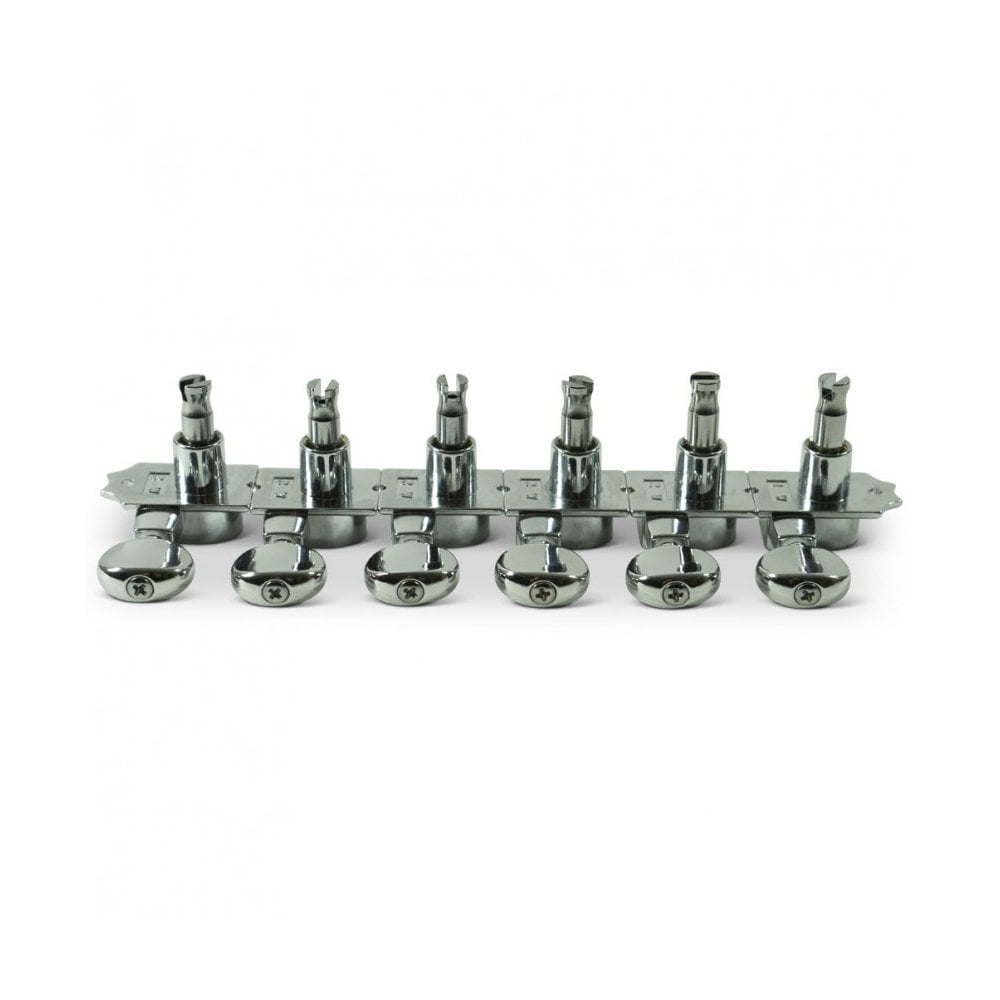

Kluson 6 In Line Revolution Series H-Mount Tuning Machines With Staggered Posts 19:1 Gear Ratio

The Kluson Revolution H-Mount 19:1 high ratio tuning machine. A traditional 6 in line footprint with contemporary sealed diecast housing.

These state of the art tuning machines are designed to directly retrofit diecast tuning machines with a hex head (bolt) bushing, traditional Kluson 6 in line mounting pattern and modern 25/64 inch peghole. The vintage outline, metal oval button and pinstripes pay tribute to Kluson heritage while the stylized one-piece housing encloses the features that modern guitarist demand. A 19:1 high gear ratio guarantees silky smooth operation and fine tuning stability with no backlash.

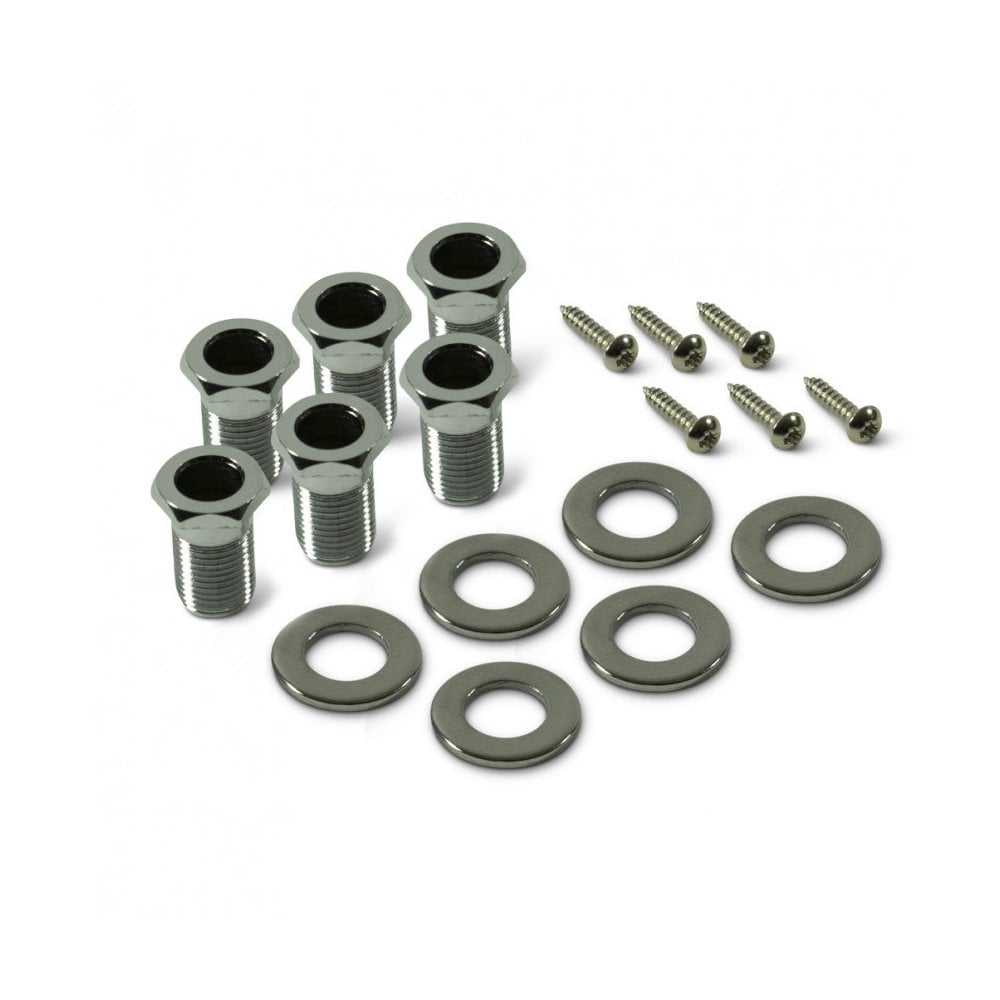

Includes 6 in line tuning machine set for right handed instruments and all mounting hardware.

Newly upgraded with staggered post heights. Staggered posts negate the need for a traditional string tree. By eliminating the string tree, the break point created on the string before the nut is also removed; increasing string life, resonance, and tuning stability.

Peghole size required= 25/64 in. (10mm)

Gear ratio= 19:1

Bushing Type= Screw-in Hex Head

String Post Type= Staggered Kluson SafeTi Post

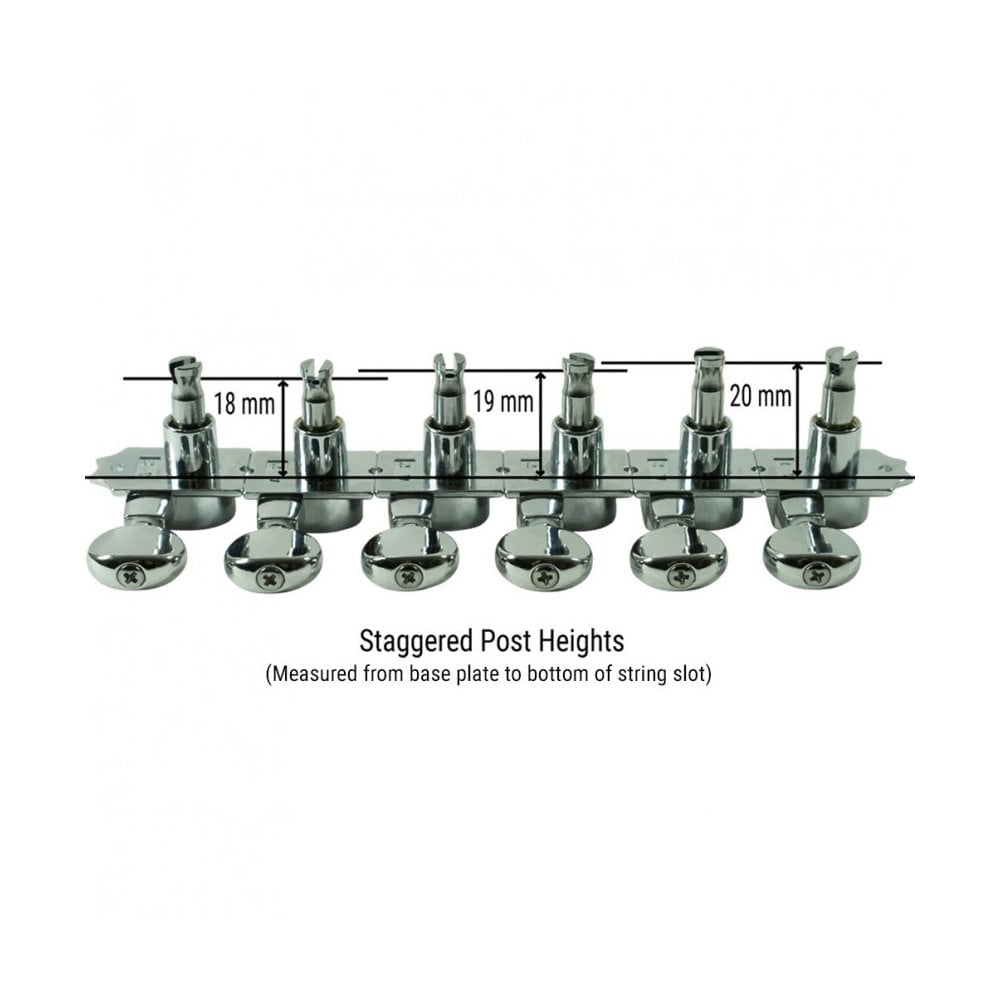

String Post Heights=

(2 Machines) 18mm

(2 Machines) 19mm

(2 Machines) 20mm

String Post Diameter= 6mm
