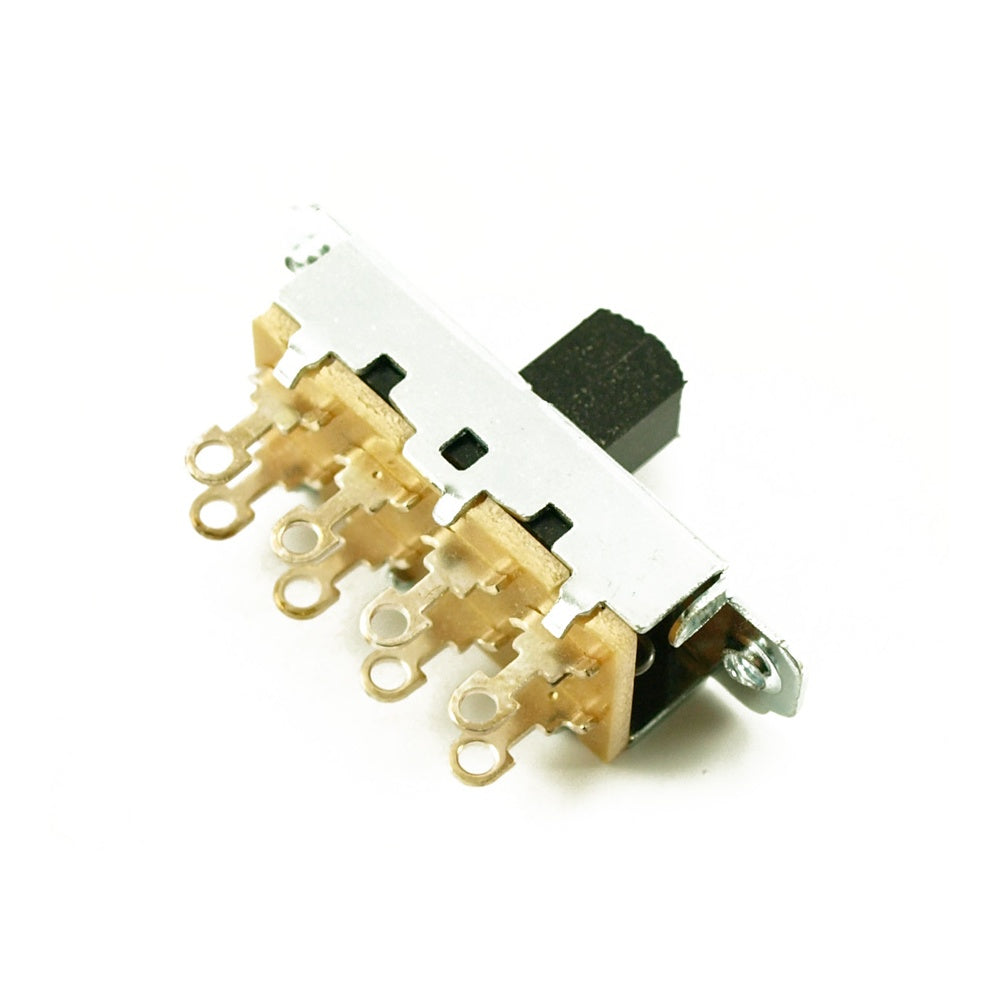

SwitchCraft Mustang/Duosonic Slide Switch

Switchcraft - The name says it all. Suppliers for all top quality guitars over the past 50 years. Comes with mounting screws. This three-position switch can be wired as on/on/on or on/off/on.

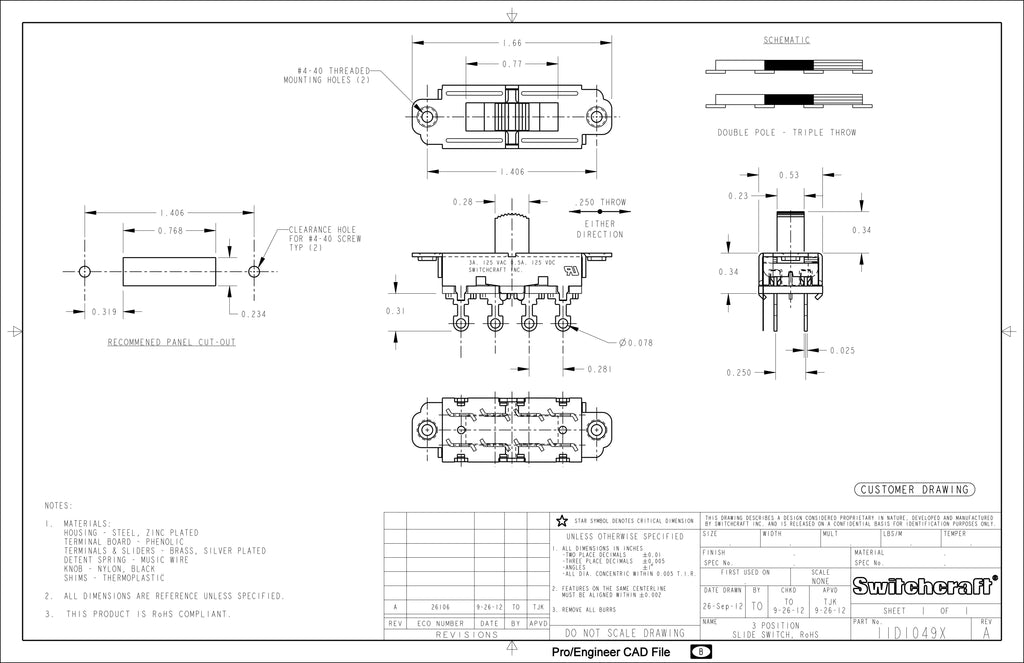

35mm centre to centre of the two mounting screw holes.

Switchcraft Specifications:

Manufacturer part code: 11D1049X

Electrical

Contact Ratings: Fine silver contacts rated at 3A, 300W maximum AC non-inductive load standard.

Leakage Resistance: 1,000 MW or greater

Dielectric Strength: 250 VDC

Material

Frame: Steel, plated

Knob: Black molded thermoplastic
