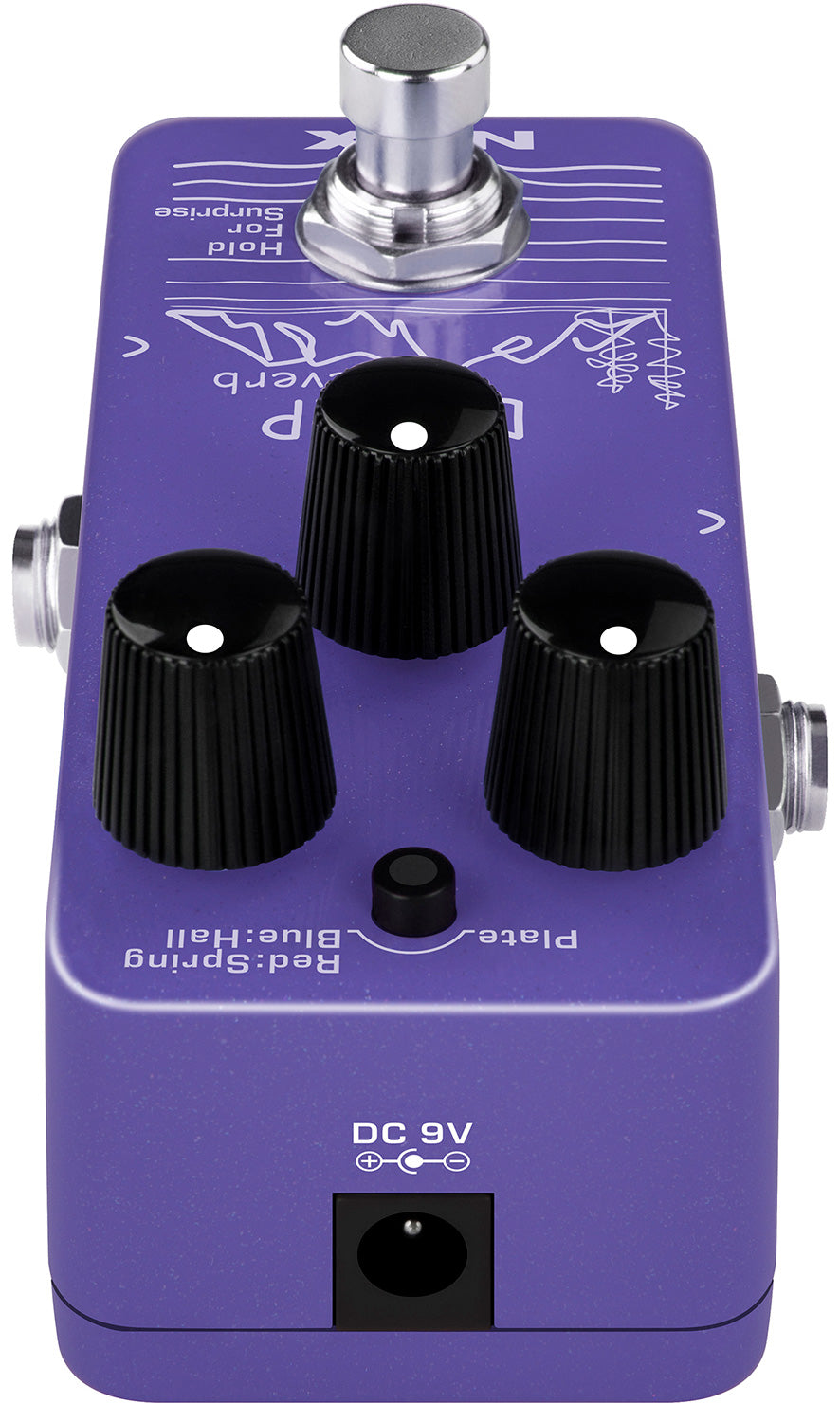

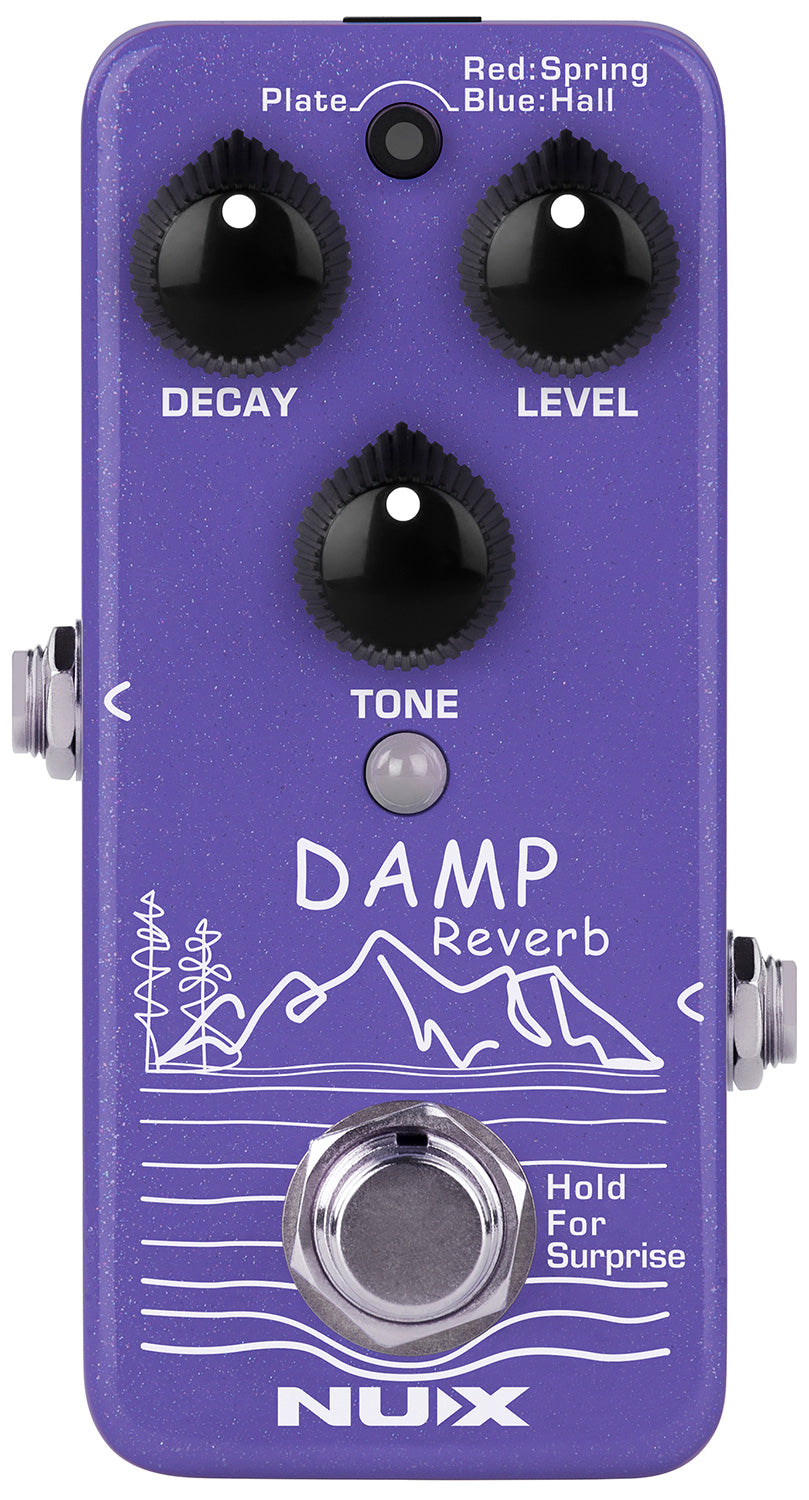

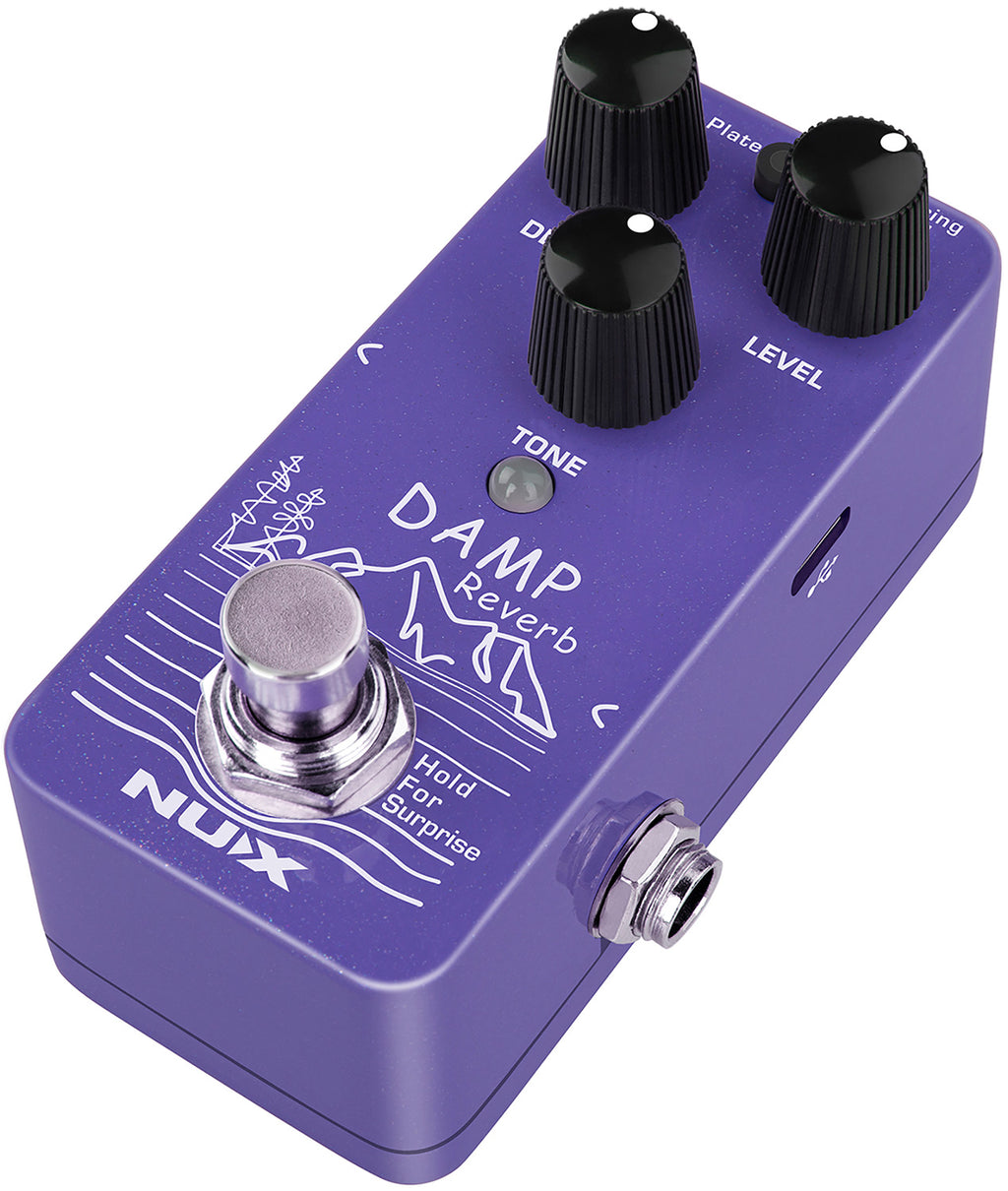

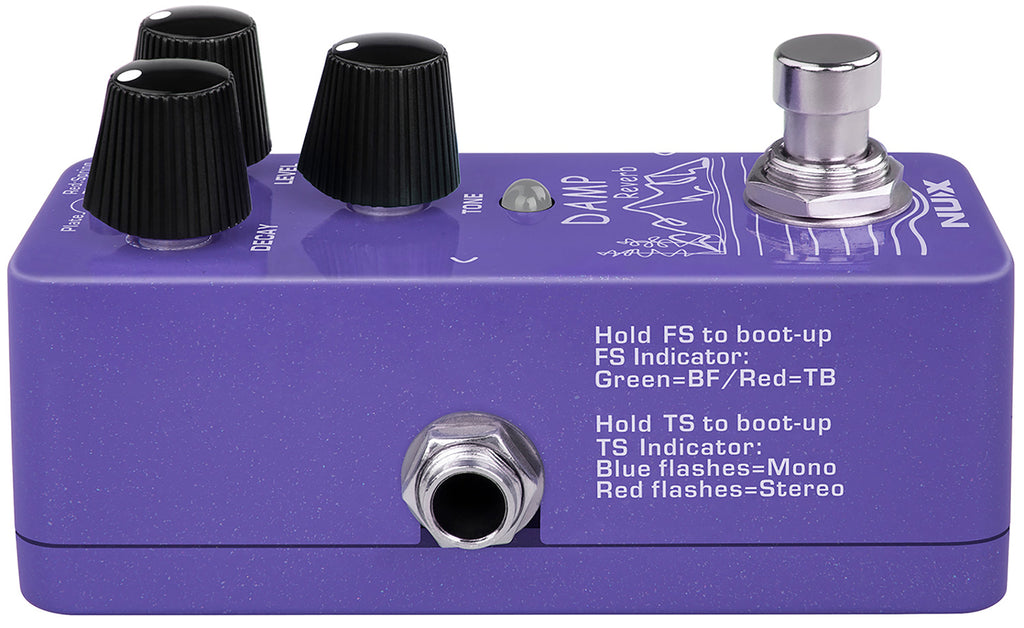

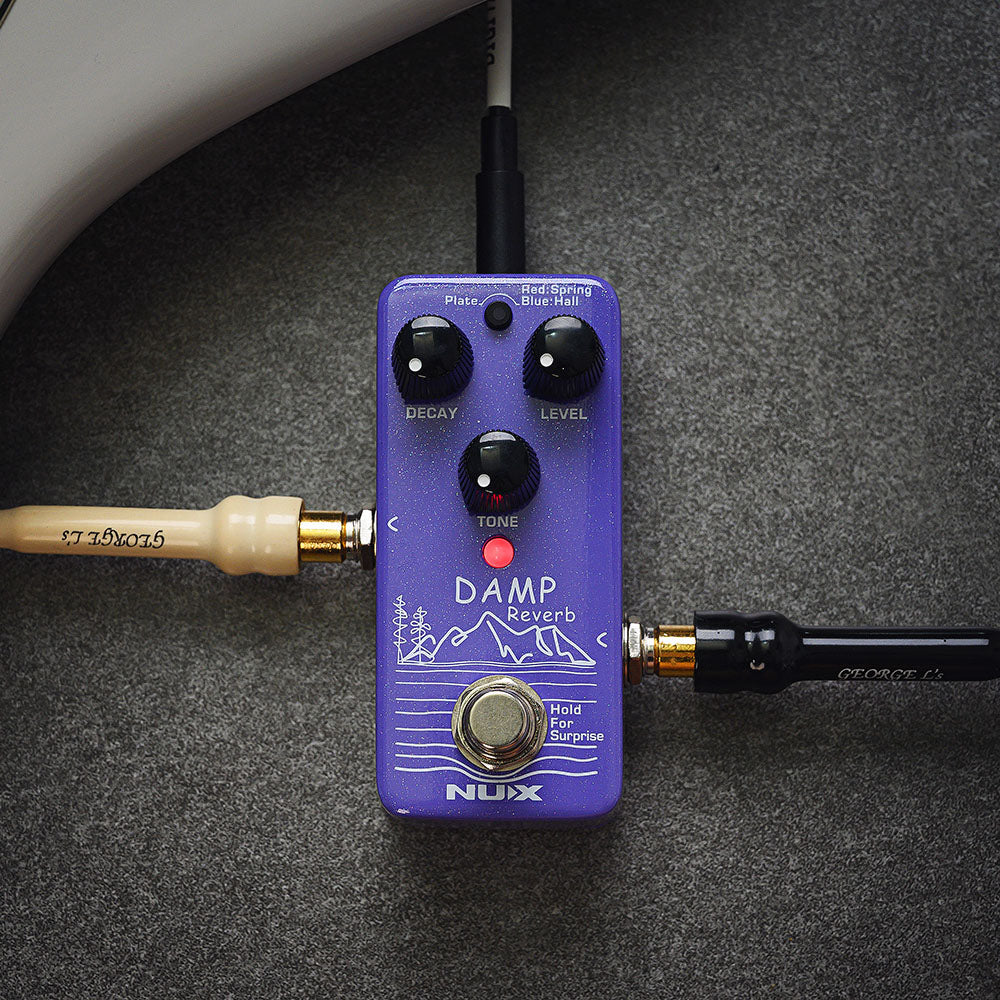

Nux NRV-3 Damp Reverb Pedal

Damp is the name given to this miniature digital reverb pedal to describe the immersive sound image provided by its 3 inbuilt reverb models. A choice of Spring, Plate or Hall reverberation types can be selected by the illuminated push button at the top of the pedal. Holding this button down during power-up selects between mono output or stereo output, which requires a stereo jack lead. Three rotary controls adjust Decay, Level and Tone settings as required. Pressing the footswitch activates or deactivates the effect, whilst holding this pedal enables a secondary effect - Shimmer in Plate mode or Freeze in Spring or Hall modes. The Damp pedal is versatile enough to cover a wide range of reverb styles with a minimal footprint on guitarists' pedalboards or for patching into an effects loop for other instruments or even vocals.

Features:

• – 3 reverb types in the mini enclosure.
• – Plate: Clear ambience. Renowned studio reverb found on classic recordings.
• – Spring: Bottom-heavy dimension flashback. Classic “surf” reverb; great for Rockabilly!
• – Hall: Lush & large encompassing reverb with warm decay.
• – Holding footswitch for secondary function. (Shimmer, Freeze)
• – True-bypass or Buffer-bypass(Trails).
• – Supports Stereo.
• – Low power consumption. (less than 100mA)

– Analog dry signal for low noise and zero latency.

Specs:

• – Input Impedance: 1MΩ
• – Output Impedance: 10kΩ
• – Dynamic Range: 103dB
• – DSP Processing: 48KHz/32-bit
• – A/D D/A Sampling Rate: 48KHz/24-bit
• – Power: 9V DC(Negative tip, Optional ACD-006A adapter)
• – Current Draw: less than 100mA
• – Dimensions: 94(L)X51(W)X53(H)mm
• – Weight: 175g
